Product Description
Dual-use Metal Sheet and Pipe Laser Cutting Machine is engineered for precision cutting of both circular and square metal pipes/tubes, as well as flat sheets.
Built with a robust steel frame and a rack-driven system, it incorporates a specialized CNC system dedicated to pipe laser cutting, ensuring high accuracy and efficiency in operation.
With more than 3,500 sets of our CNC fiber laser cutting machines delivered to over 180 countries, this model offers an economical and reliable solution for users seeking versatility in processing both plates and pipes.
Feature
Provides long-term stability and resists deformation, ensuring durability over years of operation.
High-quality guide rails and racks deliver reliable and precise cutting performance.
Equipped with top-tier imported components to ensure powerful cutting performance, high accuracy, and steady operation.
Machine parameter
| Model | GTX-1530FG |
| Laser operating medium | ND:YVO4 |
| Laser wavelength | 1070nm |
| Rated output power | 3000w |
| Beam quality | <0.373mard |
| Maximum speed of air travel | 80m/min |
| Maximum acceleration | 1.0G |
| Maximum cutting thickness | Carbon steel ≤20mm, Stainless steel ≤10mm |
| Effective cutting range | 1500x300mm |
| Voltage | 50Kw |
| Electricity demand | 380v/50Hz |
| Main engine footprint | 3500*5000*2200mm |
| Table bearing | 2000KG |

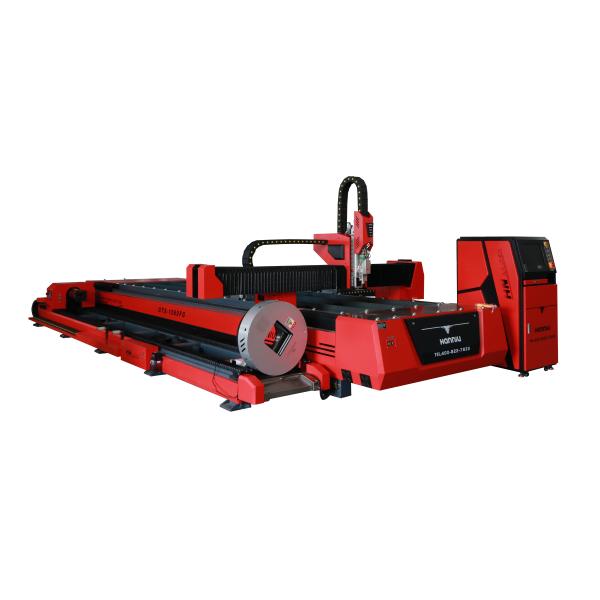

Machine picture
Cutting sample
Laser cutting parameters
| Laser power (W) | Carbon steel (mm) | Stainless steel (mm) | Aluminum (mm) | Brass (mm) |
| 1000 | 10 | 4 | 3 | 2 |
| 1500 | 14 | 6 | 3 | 3 |
| 3000 | 20 | 10 | 6 | 5 |
| 6000 | 25 | 16 | 12 | 2 |
| 12000 | 40 | 30 | 30 | 14 |
Company&factory
Exhibition
Packing&Shipping
- Standard plywood case, no need to steam, can export directly.
- Car-lift machine up and down loading. more safe for machine.
- When importing, the plywood case is with fumigation-free, the procedure is simple.
- Delivery Detail: within 3-5 days after received your payment.
FAQ
-
Q: Does Han Niu Laser offer online technical support?
A: Yes, Han Niu Laser is equipped with a professional technical team to provide customers with timely online technical support.
-
Q: How does Haniu Laser handle after-sales issues like repairs and parts?
A: From fault repair to parts replacement, Haniu Laser relies on its complete global service network to provide reliable support for customers.
-
Q: What kind of technical support does Han Niu Laser provide?
A: Han Niu Laser has a professional technical team that offers customers timely online technical support.
-
Q: How does Haniu Laser ensure reliable after-sales support globally?
A: It relies on its complete global service network to provide reliable support for customers, covering everything from fault repair to parts replacement.
-
Q: Is there a dedicated team for technical support at Han Niu Laser?
A: Yes, Han Niu Laser is equipped with a professional technical team to deliver timely online technical support to customers.
